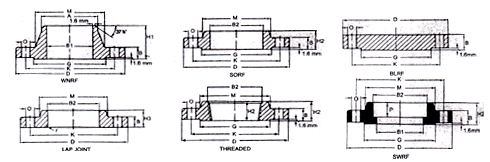

Dimensions in MM of ANSI B 16.5 Class 150
| Size | D | B | G | M | H1 | H2 | H3 | A | B1 | B2 | K | N | O | DEP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| O.D. | THK | R.F.DIA | HUB OD | W/N | SORF | LAP JOINT | Neck OD | WNRF ID | ID SW/ LAP/SORF |
PCD | NO. OF HOLES | HOLE DIA | P | |
| 1/2" | 88.9 | 11.1 | 34.9 | 30.2 | 47.6 | 15.9 | 15.9 | 21.3 | 15.7 | 22.35 | 60.3 | 4 | 15.9 | 9.65 |
| 3/4" | 98.4 | 12.7 | 42.9 | 38.1 | 52.4 | 15.9 | 15.9 | 26.7 | 20.8 | 27.70 | 69.8 | 4 | 15.9 | 11.14 |
| 1" | 107.9 | 14.3 | 50.8 | 49.2 | 55.6 | 17.5 | 17.5 | 33.5 | 26.7 | 34.54 | 79.4 | 4 | 15.9 | 12.7 |
| 1.1/4" | 117.5 | 15.9 | 63.5 | 58.7 | 57.1 | 20.6 | 20.6 | 42.2 | 35.1 | 43.20 | 88.9 | 4 | 15.9 | 14.3 |
| 1.1/2" | 127.0 | 17.5 | 73.0 | 65.1 | 61.9 | 22.2 | 22.2 | 48.3 | 40.9 | 49.50 | 98.4 | 4 | 15.9 | 15.9 |
| 2" | 152.4 | 19.1 | 92.1 | 77.8 | 63.5 | 25.4 | 25.4 | 60.4 | 52.6 | 62.00 | 120.6 | 4 | 19.0 | 17.5 |
| 2.1/2" | 177.8 | 22.2 | 104.8 | 90.5 | 69.8 | 28.6 | 28.6 | 73.1 | 62.7 | 74.70 | 139.7 | 4 | 19.0 | 19.0 |
| 3" | 190.5 | 23.8 | 127.0 | 107.9 | 69.8 | 30.2 | 30.2 | 88.9 | 78.0 | 90.70 | 152.4 | 4 | 19.0 | 20.6 |
| 3.1/2" | 215.9 | 23.8 | 139.7 | 122.2 | 71.4 | 31.7 | 31.7 | 101.6 | 90.2 | 103.50 | 177.8 | 8 | 19.0 | 22.3 |
| 4" | 228.6 | 23.8 | 157.2 | 134.9 | 76.2 | 33.3 | 33.3 | 114.3 | 102.4 | 116.00 | 190.5 | 8 | 19.0 | 23.8 |
| 5" | 254.0 | 23.8 | 185.7 | 163.5 | 88.9 | 36.5 | 36.5 | 141.2 | 128.3 | 143.80 | 215.9 | 8 | 22.2 | 23.8 |
| 6" | 279.4 | 25.4 | 215.9 | 192.1 | 88.9 | 39.7 | 39.7 | 168.4 | 152.4 | 170.50 | 241.3 | 8 | 22.2 | 26.9 |
| 8" | 342.9 | 28.6 | 269.9 | 246.1 | 101.6 | 44.4 | 44.4 | 219.2 | 202.7 | 221.50 | 298.4 | 8 | 22.2 | 31.7 |
| 10" | 406.4 | 30.2 | 323.0 | 304.8 | 101.6 | 49.2 | 49.2 | 273.0 | 254.5 | 276.40 | 361.9 | 12 | 25.4 | 33.2 |
| 12" | 482.6 | 31.8 | 323.8 | 365.1 | 114.3 | 55.6 | 55.6 | 323.8 | 304.8 | 327.20 | 431.8 | 12 | 25.4 | 39.6 |
| 14" | 533.4 | 34.9 | 412.7 | 400.0 | 127.0 | 57.1 | 79.4 | 355.6 | 336.6 | 359.20 | 476.2 | 12 | 28.6 | 41.4 |
| 16" | 596.9 | 36.5 | 469.9 | 457.2 | 127.0 | 63.5 | 87.3 | 406.4 | 387.35 | 410.50 | 539.7 | 16 | 28.6 | 44.4 |
| 18" | 635.0 | 39.7 | 533.4 | 504.8 | 139.7 | 68.3 | 96.8 | 457.2 | 438.15 | 461.80 | 577.8 | 16 | 31.7 | 49.2 |
| 20" | 698.5 | 42.9 | 584.2 | 558.8 | 144.5 | 73.0 | 103.2 | 508.0 | 489.00 | 513.10 | 635.0 | 20 | 31.7 | 54.1 |
Features
- Highly durable
- Dimensionally accurate
- Excellent performance
- Simple installation
Range
- Weldneck
- Slip-on
- Socket weld
- Lap joint
- Threaded
- Swivel
- Blind
- Orifice & anchor/hanger.
